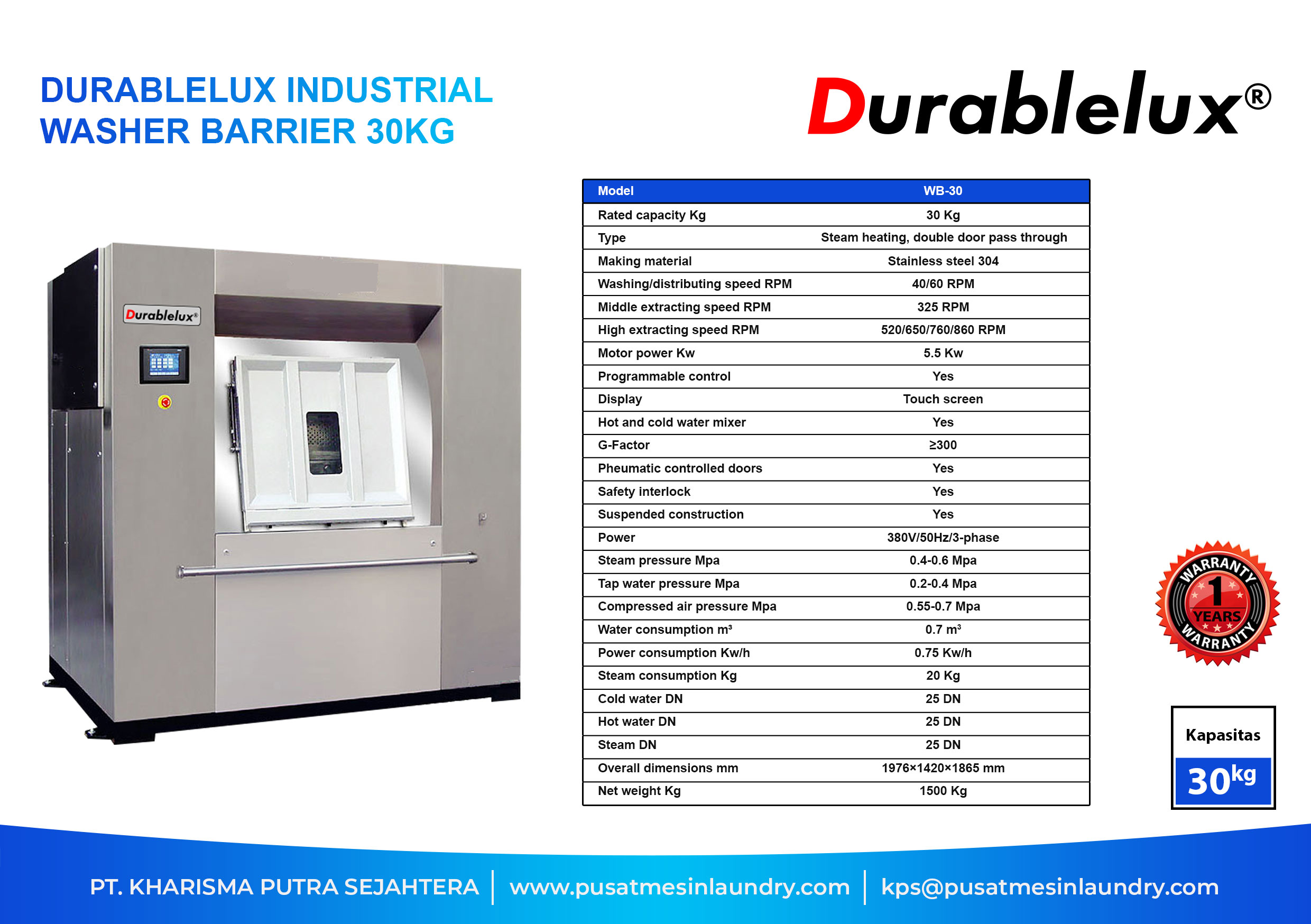

Rated capacity Kg : 30 кg
Type : Steam heating, double door pass through
Making material : Stainless steel 304
Washing/distributing speed RPM : 40/60 RPM
Middle extracting speed RPM : 325 RPM
High extracting speed RPM : 520/650/760/860 RPM
Motor power Kw : 5.5 Kw
Programmable control : Yes
Display : Touch screen
Hot and cold water mixer : Yes
G-Factor : 2300
Pheumatic controlled doors : Yes
Safety Interlock : Yes
Suspended construction : Yes
Power : 380V/50Hz/3-phase
Steam pressure Mpa : 0.4-0.6 Mpa
Tap water pressure Mpa : 0.2-0.4 Mpa
Compressed alr pressure Mpa : 0.55-0.7 Mpa
Water consumption m³ : 0.7 m³
Power consumption Kw/h : 0.75 Kw/h
Steam consumption Kg : 20 Kg
Cold water DN : 25 DN
Hot water DN : 25 DN
Steam DN : 25 DN
Overall dimensions mm : 1976 1420%1865 mm
Net welght kg : 1500 Kg
